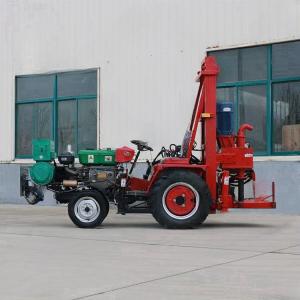

Tractor Drilling Rig, 100 Meter Positive Circulation Drilling Equipment, Farmland Irrigation Well
1. Brief introduction of JZ-C series tractor-mounted positive circulation water well drilling rig
JZ-C series tractor-mounted positive circulation water well drilling rig uses tractor as carrier, and it is equipped with hydraulic telescopic carriage with reference to the hydraulic forklift. Greatly reduced the size of the drilling rig, is easy to drill wells and motorized wells in small spaces. JZ-C series tractor-mounted positive circulation water well drilling rig is equipped with a diesel generator for itself, which makes it easy to switch between diesel and electricity. The motor drives the gearbox. The gearbox uses high and low gears to easily deal with different formations, which greatly improves the drilling efficiency.
2. Features of JZ-C series tractor-mounted positive circulation water well drilling rig
(1) With the tractor as the carrier, the performance is stable and the field transfer is convenient.
(2) The tractor chassis adopts electric start, which reduces the labor intensity of the operator and is convenient to start in the cold season.
(3) Equipped with hydraulic outriggers, used for leveling of the drilling rig to ensure the stability of the fuselage.
(4) The generator is placed in front of the drilling rig, and it is convenient to switch between diesel and electricity.
(5) The layout of operation handle and distribution box is compact and reasonable, which is convenient for operation.
(6) It is equipped with high and low gearboxes, which can meet the different speed requirements of different strata.
3. Technical parameters of JZ-C series tractor-mounted positive circulation water well drilling rig
| Model | JZ-C |
| Drilling diameter | mm | 200-850 |
| Drilling depth | m | 20-120 |
| Drill pipe specifcations | mm | Φ60*2000 |
| Tractor power | hp | 36 |
| Generator | kw | 30 |
| Rotary main motor | kw | 11 |
| Hydraulic oil pump motor | kw | 4 |
| Rig weight | T | 2.7 |
| Transport size | mm | 4100*1400*2650 |
Note: The drilling rig accepts customization, and the parameters will be changed as above.
